Diode Laser Machines

A diode laser generates light from semiconductor bars rather than a crystal or a flash lamp. That gives it three advantages for hair removal: the wavelength is stable and precise, the bar is efficient so handles stay compact, and the source lasts for 100 to 200 million shots before it needs attention.

The beam passes through a chilled sapphire tip into the skin, where melanin in the hair shaft and follicle absorbs it and converts it to heat. Follicles in the active growth phase are damaged and stop producing hair; follicles that are resting are not, which is why a course of 6 to 8 sessions is needed.

Why 808 nm is the standard

808 nm sits in the window where melanin absorption is still strong and penetration reaches the bulb of the follicle 2 to 4 mm down. It works on most hair colors and on light to medium skin, and it is the wavelength almost every professional diode is built around. You will also see 810 nm on some brands; the two are interchangeable in practice.

How diode compares with the alternatives

Alexandrite (755 nm) is slightly more effective on fine, light hair but riskier on darker skin. Nd:YAG (1064 nm) is the safest on dark skin but slower on fine hair. IPL and DPL spread energy across a band of wavelengths, which makes them versatile for skin treatments but less efficient on hair. Modern multi-wavelength diodes put 755, 808 and 1064 nm in one handle, so a diode machine now covers the range that once needed two lasers.

The number of wavelengths in the handle decides which clients you can treat and how comfortable the session is. Match it to your client base before you compare anything else.

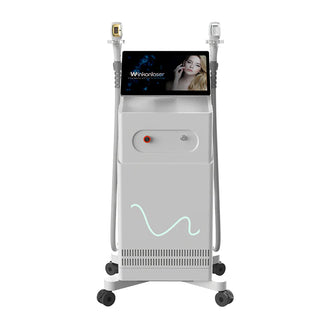

• Single 808 nm (DK50): the entry point. Fitzpatrick I to IV, most hair colors, lowest price. The right choice for a new studio with a lighter-skinned clientele.

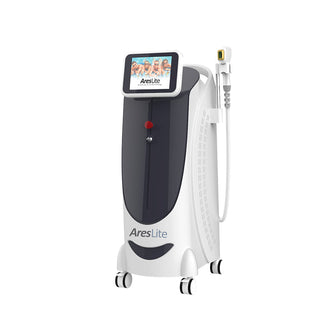

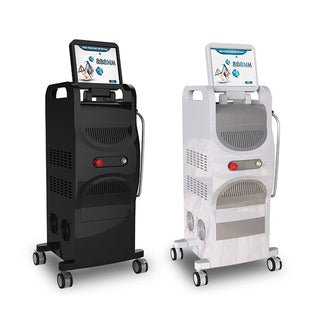

• Triple 755, 808 and 1064 nm (Aresmix DL900, AresLite DM20): 755 nm picks up finer hair and 1064 nm makes darker skin safe to treat. The DM20 adds FAC optics for 99 percent energy transfer and an IP65 handle.

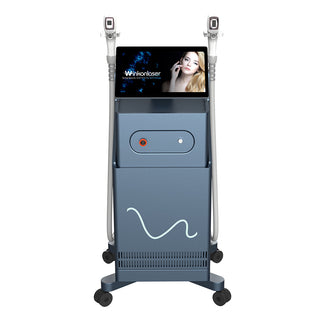

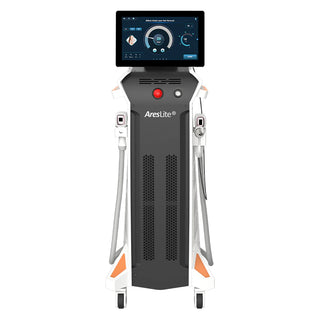

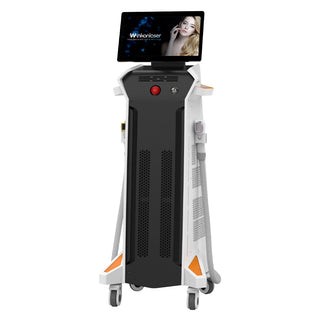

• Quad 755, 808, 940 and 1064 nm (AresLite DM40P, DM40PHK, DM50P, AresMix DL1500, AresSmart DL500): 940 nm fills the gap between 808 and 1064 nm for medium to dark skin, and the four can fire together so the operator sets one parameter per body area instead of switching wavelengths. The default for a general practice.

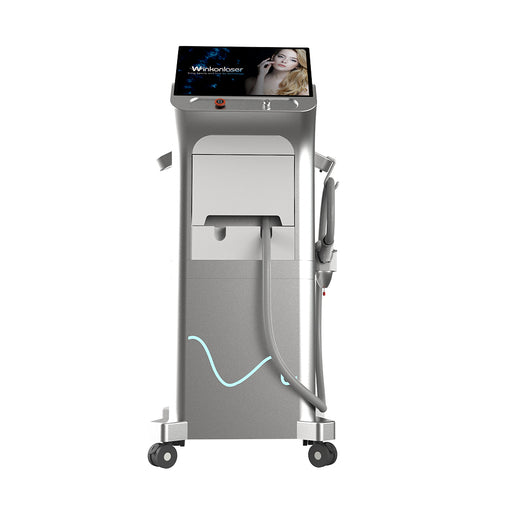

• 755 and 1064 nm (AresLite DM60): the two ends of the range without 808 nm, aimed at high-volume clinics that treat a wide mix of skin tones, with AI zone adaptation and four dynamic spot sizes.

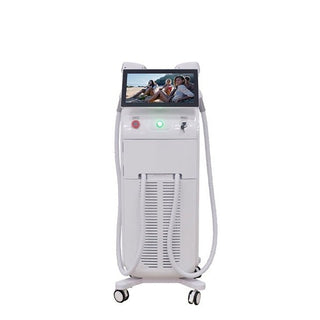

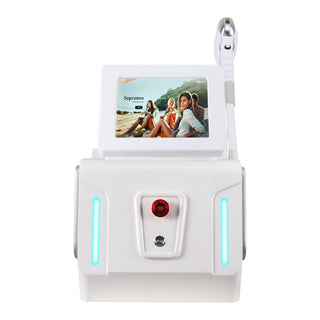

• Shape Tactics multi-wavelength systems: lower-priced multi-wavelength diodes for spas that want hair removal plus skin modes from one handle. Ask us for the spec sheet before you compare them on output.

The comparison table above lists the wavelengths for every model.

Once the wavelengths fit, these are the numbers that decide speed, comfort and lifespan.

Handle power

600 W to 3,000 W across this collection. Power sets how much energy the handle can deliver per second, so a 3,000 W handle keeps fluence high while shortening pulses and moving faster. For a studio doing a few sessions a day, 1,200 W is plenty; for back-to-back full-body appointments, go to 1,800 or 3,000 W. Within a model line the handle wattage is the main price step.

Repetition rate

Modern diodes fire at up to 20 Hz (the SIFHR systems: AresSmart DL500 and AresMix DL1500). High frequency at lower fluence is the "in motion" technique that clients find more comfortable, and it is how a pair of full legs becomes a 20-minute treatment.

Cooling

Contact cooling at the sapphire tip is what makes a diode tolerable at effective settings. Compare the stated tip temperature (the DL900 holds -12 to -3 C, the DL1500 system reaches -45 C) and whether the console is rated for continuous operation. Machines built for 24-hour running suit clinics with several rooms.

Spot size

Larger spots cover legs and backs faster; smaller spots reach lips, fingers and ears. Several AresLite models ship with multiple spot sizes and AI dynamic spot switching that adjusts parameters automatically when you swap the tip.

Laser bar life and build

Diode bars are rated in shots: 100 to 200 million on the AresLite and AresMix lines, which at clinic volume is many years of use. Branded bars (the DL1500 uses a Coherent bar), an IP rating on the handle, and handle weight (350 g on the DM50P) all matter over thousands of sessions.

Console or portable

The AresSmart DL500 and similar portable units save floor space and can move between rooms or locations. Console systems carry bigger cooling systems, larger screens and Android control with preset protocols by body area. Two-handle configurations let one console serve two rooms or keep a spare handle in rotation.

Price tiers in this collection

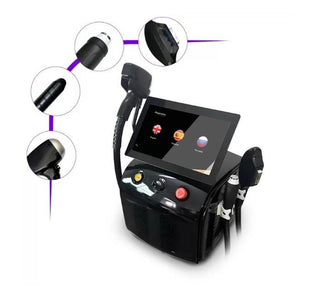

• Entry, $3,100 to $4,200: DK50 808 nm, Aresmix DL900 triple, AresSmart DL500 quad, Shape Tactics Soprano Ice Pro 4-in-1 and Depi.
• Mid, $4,500 to $6,300: AresMix DL1500, AresLite DM50P, AresLite DM20, AresLite DM40P at 1,200 W, Shape Tactics Platinum systems.

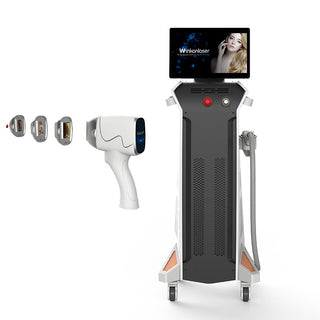

• Flagship, $6,700 to $8,350: AresLite DM40P and DM60 at 3,000 W, Areslite DM40PHK.

Handle power is the biggest price lever inside a line. The AresLite DM40P runs from $5,000 with a 600 W handle to $8,200 with a 3,000 W handle and Android Smart 2.0. A second handle adds a few hundred dollars on the DK50 and nothing on some other models, so check the variant list on each product page.

Why these cost less than the flagship clinic brands

The best known diode platforms sell for several times these prices. Part of that is brand, part is a service contract, and part is distribution through sales reps. The machines here are sold direct by a US retailer with a 3-year manufacturer warranty, so you get the same category of technology (multi-wavelength diode, contact cooling, high repetition rate) at a price a single-room practice can pay back within its first year.

Running costs

Diode lasers have few consumables. Cooling gel is optional on most of these systems, the bar is rated for 100 million shots or more, and the recurring items are protective eyewear, tips or windows, and periodic water or filter service on the cooling system.

Payback

A full-leg or back session is commonly priced at several hundred dollars in US clinics and takes under 30 minutes on a modern diode. Divide the machine price by the monthly profit after staff time and room cost, using conservative bookings for the first months. Our B2B team can run the numbers on two models for you.

FDA clearance

"FDA cleared" means a specific model has completed 510(k) review for permanent hair reduction. Clearance belongs to a model, not to the diode category. We are collecting clearance documentation for each system; ask our team for the 510(k) status of any model before you advertise it.

Who can operate a diode laser

Rules vary by state. Some restrict laser hair removal to physicians, nurses or supervised medical staff; others license estheticians or laser technicians. Check your state board before you buy. The machines here are professional systems and are not sold for self-treatment.

Training and documentation

Every machine ships with a user manual and treatment parameters by body area. Winkonlaser includes video instructions and offers optional technician training on selected models. The Android-based AresLite systems pre-load protocols by treatment zone.

Warranty

Winkonlaser systems carry a 3-year manufacturer warranty. Shape Tactics systems carry a 2-year limited warranty. We are your US point of contact for warranty claims, parts and handles.

Shipping

Free shipping on domestic USA orders in the lower 48 states, including freight for console systems. We can ship to Alaska, Hawaii and some international destinations with a quote.
